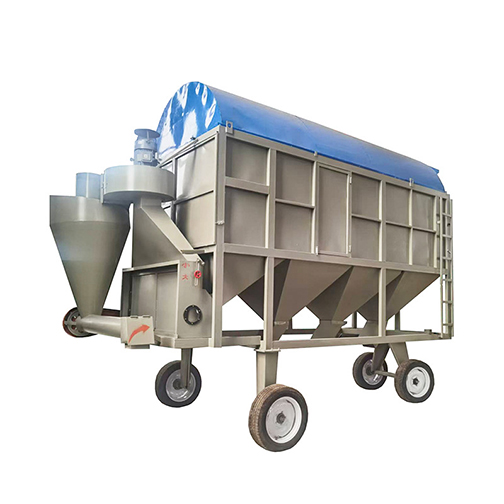

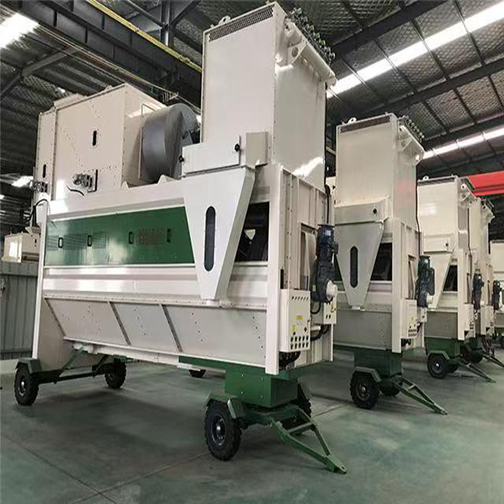

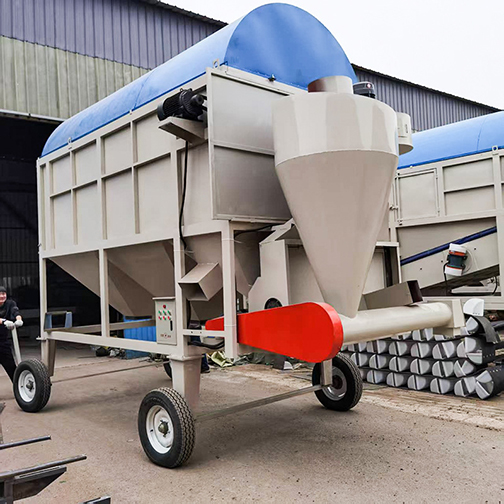

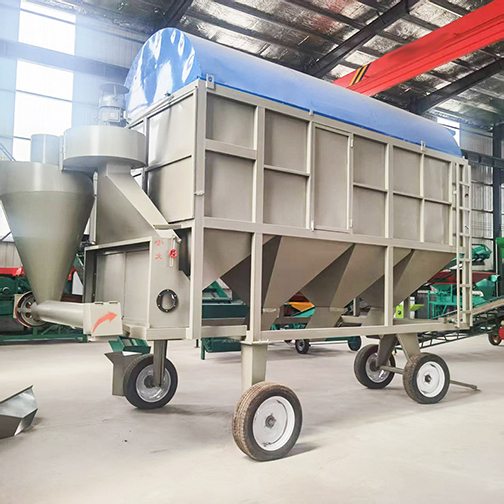

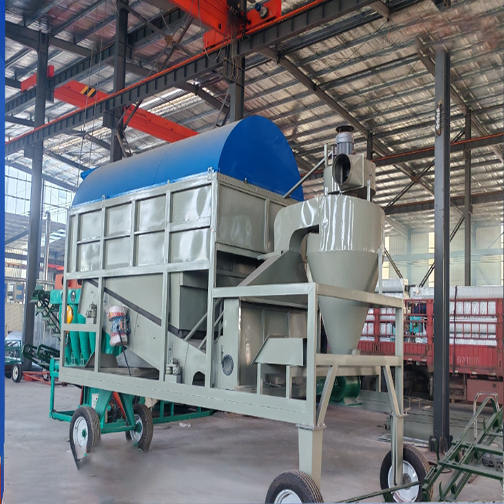

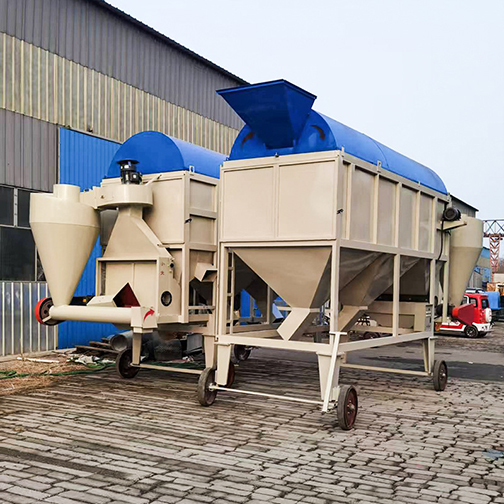

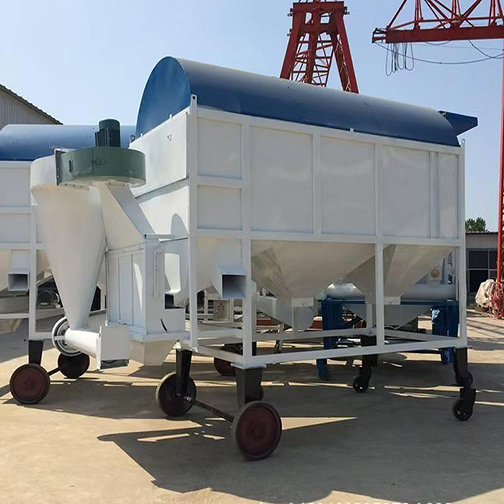

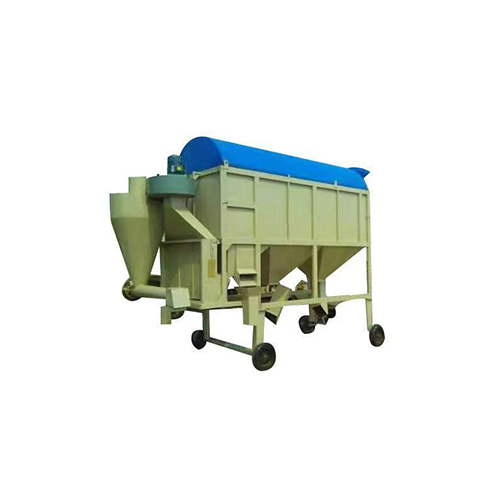

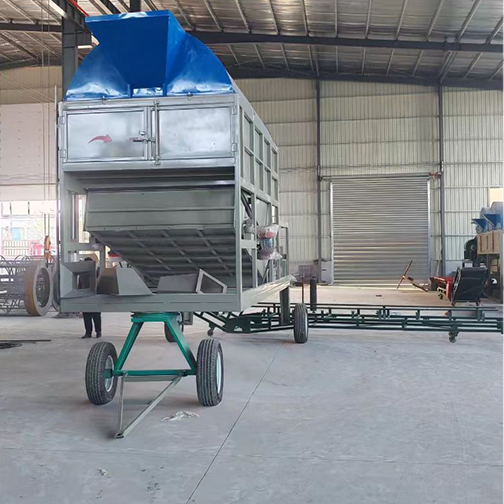

Drum cleaning screen
- Efficient screening: The cylindrical structure of the corn flakes cylinder cleaning screen enables it to continuously screen the corn flakes. The material in the cylinder is constantly tumbling and screening as the screen body rotates, which can achieve a higher processing capacity and can quickly and effectively separate impurities and unqualified particles in the corn flakes.
- Thorough removal of impurities: The corn flake cylinder cleaning screen can make the corn flakes move fully in the screen cylinder through the reasonable design of the screen hole size and arrangement, as well as the rotation speed and angle of the screen body, so that impurities have more opportunities to be discharged through the screen holes, thereby more thoroughly removing various impurities in the corn flakes, such as crushed pieces, stones, metals, etc.
- Protect corn flakes: The working process of the corn flake cylinder cleaning screen is relatively gentle. The corn flakes are gradually screened in the screen cylinder as it rotates, and will not be subjected to strong impact and extrusion. This helps to reduce the breakage and damage of the corn flakes and ensure the integrity and quality of the corn flakes.
- Easy to operate: The structure of the corn flake cylinder cleaning screen equipment is relatively simple, and the operation interface is intuitive, which is easy for staff to master and operate. Daily start, stop, parameter adjustment and other operations are relatively convenient, and the maintenance of the equipment is also relatively convenient, which reduces the workload and maintenance costs of operators.
- Strong adaptability: The corn flake cylinder cleaning screen can adapt to various screening needs by adjusting parameters such as sieve hole size, sieve drum speed, feed speed, etc. according to different corn flake varieties, humidity, impurity content and other characteristics. It has strong versatility and flexibility and can be widely used in corn flake production companies and processing scenarios of different sizes.
Working principle of corn flake cylinder cleaning screen
The corn flakes enter the inclined cylindrical screen drum from the feed inlet. The screen drum rotates under the drive device. The corn flakes roll along the barrel wall under the action of gravity and centrifugal force. Impurities smaller than the screen holes fall through the screen, while large impurities are pushed to the large impurity outlet under the conveyor of the beating plate and discharged.
Structural design of corn flake cylinder cleaning screen

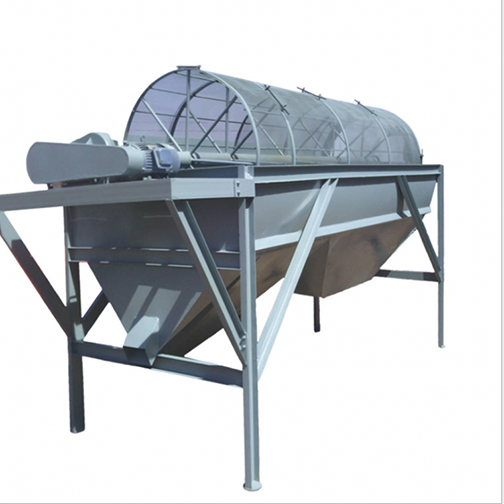

- Screen drum: It is mostly made of wear-resistant materials, such as stainless steel, etc. It is equipped with a cleaning brush inside to reduce the load on the drive device and ensure the screening effect.
- Driving device: usually a speed reducer, directly connected to the screen drum to ensure stable driving and smooth operation of the screen drum.
- Air suction port: There is an upper air suction port in the middle of the upper part of the outer shell, and a lower air suction port is provided below the finished product outlet to absorb dust and avoid pollution.
- Discharge port: There are small impurity outlet, finished product outlet and large impurity outlet at the bottom of the outer shell, which is convenient for the classification and collection of different impurities and finished products.
Corn flake cylinder cleaning screen performance parameters
- Processing capacity: Common models have an hourly processing capacity of about 40-80 tons. For example, the 80-type cylindrical cleaning screen can screen about 40 tons of corn per hour.
- Screen specifications: The screen sizes are varied, commonly used are 2000mm, etc. The size of the screen holes is selected according to demand, generally between 2-20mm.
- Corn flake cylinder cleaning screen motor power: Depending on the size and processing capacity of the equipment, the motor power is generally between 5.5-7.5kW.
- Dimensions: Different models vary, common ones include length 5300mm × width 2000mm × height 4200mm, length 6800mm × width 3550mm × height 3880mm.
Corn flake cylinder cleaning screen equipment advantages
- Efficient impurity removal: It can continuously screen and effectively remove large, small and light impurities in corn flakes, with a large impurity removal efficiency of up to 99%.
- Strong adaptability: different screen meshes can be used to clean rice, sorghum, wheat, corn and other grains.
- Environmental protection and energy saving: equipped with dust removal equipment, such as pulse dust collector, Shaklong dust removal, etc., to reduce dust pollution.
